What is Overmolding?
Overmolding is the process of combining two or more materials to create a single part. Typically, a first material (sometimes called a substrate) is partially or completely covered by a subsequent material (the overmolded material) during the manufacturing process. For example, overmolding is used in medical devices to create soft-touch handles for surgical instruments. This technology can improve the function and comfort of the product. Overmolding can also be used to mold multiple colors on a given product for aesthetic or branding purposes. One of the benefits of overmolding is that it eliminates the need for a secondary assembly step, reducing manufacturing costs. Overmolding is a great option if you need to mold two or more materials together.
Types of Overmolding
Overmolding can be used to increase the strength, durability and aesthetics of plastic parts. It can also be used to add new functionality to a part, such as adding a grippy rubber surface or creating a watertight seal.

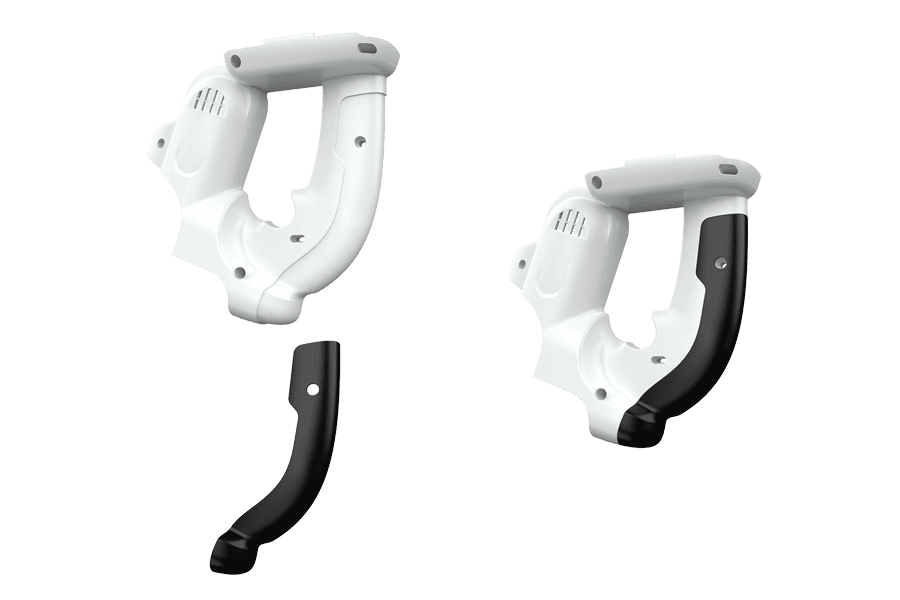

Plastic Over Plastic
A second layer of plastic is added to the core plastic section. This can be used to improve the strength or aesthetics of the part.
Rubber Over Plastic
Rubber is added to the core and can be used to improve the grip of the part or to create a watertight seal.
Plastic Over Metal
Add the plastic to the metal core. This can be used to improve the durability or aesthetics of the part.
Rubber Over Metal
Rubber is added to the metal core, which can be used to improve the durability or grip of the part.
The first material in overmolding (sometimes called the substrate) is partially or completely covered by a subsequent material (the overmolding material) during the manufacturing process.
What is a substrate?
The substrate can be virtually anything: CNC machined metal parts, molded plastic parts, or even existing products such as threaded inserts, screws, or electrical connectors. It is the first piece to end up as a single continuous part, consisting of different types of chemically bonded and often mechanically interlocked materials.
What are overmolding materials?
Overmolding material (usually plastic, rubber) mixed with additives such as colorants, blowing agents and other fillers. They are then heated to their melting point and poured into molds in liquid form. Overmolding materials have certain limitations, such as overmolding a plastic part with another plastic (or rubber or TPE), and compatibility issues may arise.
AN-Prototype offers a variety of materials for overmolding projects, depending on the geometry, complexity and requirements of your project. These materials can be divided into three distinct categories, including:
Custom Overmolding Parts Finishes
SPI is a standard developed by the American Plastics Industry Association for the plastics industry to identify the appearance quality of plastic parts. AN-Prototype also uses the SPI standard to define the finish of plastic injection molded parts. SPI’s standard specifies 12 finish grades, grouped into four categories ranging from shiny to dull. Each grade has a different requirement for perfect allowable deviation, the lower the number, the smaller the deviation, and the higher the number, the greater the deviation.
If your plastic parts require the smoothest surface possible, SPI grades A1, A2 and A3 are recommended. The manufacture of molds of this grade requires hardened tool steel with diamond-polished surfaces. Mirror gloss provides an almost mirror-like smooth finish.
If your plastic part requires a semi-gloss finish, AN-Prototype recommends SPI grades B1, B2 and B3. Sanding molds to create parts with a semi-gloss finish is ideal for removing tooling and mold marks.
If you need plastic products that require a matt finish, then we recommend SPI grades C1, C2, C3. Usually sand-polished molds are used for making parts with a matte finish.
If the plastic part requires a textured surface, AN-Prototype recommends the use of SPI grades D1, D2 and D3.
Overmolding is used to produce custom parts and assemblies for various industrial applications, used in different ways for home and business. including:
Overmolding creates toy parts by introducing resins of different colors. It also creates seamless designs instead of assembling baby products bit by bit.
The automotive industry often relies on overmolding when a plastic part needs to be made stronger or its texture needs to be changed to improve its grip.
By insulating electronic components with plastic, they can be made safer and more durable for consumers. Both insulation and encapsulation can be achieved by overmolding.
Medical devices must be designed to maintain sterility. Durability and operational safety also cannot be overlooked. Medical devices are overmolded with plastic to form a well-encapsulated structure.
